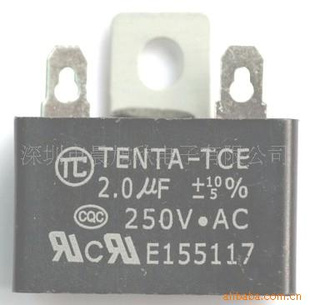

供应CBB61有机薄膜电容 启动电容运转电容TCE
当 前 价：电议
起订数量： /
供货总量： /
有效期至： 2012年12月13日
| 品牌 | TENTA | 型号 | TCE CBB61 |
| 介质材料 | 有机薄膜 | 应用范围 | 适用于交流风扇马达 |
| 外形 | 长方形 | 功率特性 | 中功率 |
| 频率特性 | 中频 | 调节方式 | 固定 |
| 引线类型 | 径向引出线 | 允许偏差 | ±5（%） |
| 耐压值 | 3000（V） | 标称容量 | 1UF-50UF |
| 损耗 | 0.35% at 60Hz | 额定电压 | 250VAC 300VAC 350VAC 400VAC 50-60Hz（V） |
| 额定电流 | **（A） | | |
TYPE: TCE
INTRODUCTION
1. Capacitors are made from Metallized polyester Film and packed by
difficult burned plastic box, and filled with Epoxy.
使用金属化聚丙烯膜制作电容器本体放入防火胶壳已树脂覆盖
2. It is self-healing flat style capacitor.
电容器本身也有自愈性特质
3. It possesses several merits such as shape small light, top security, low
loss, good insulation.
有许多优点例如体积小重量轻，安全性高，低损耗，绝缘好
4. It is designed to be used for motors of exhaust fan AC motor etc.
适用于交流风扇马达
5. Its terminal has solder type, TC insertion type and leader wire type etc.
多种端子型接头，道线型，电线型与端子型
6. Flame retardant plastic cases and epoxy resin.(compliance with UL 94V-0)
防燃塑料壳与环氧树脂（符合UL 94V-0）
7. Approval: UL/CUL NO.155117.CQC
安规认证：UL/CUL NO。155117。CQC
SPECIFICATIONS:
工作温度Operating temperature | -25 to +70℃ |
额定电压Rated voltage | 250,300,350,400VAC 50-60Hz |
电容量范围Capacitance range | 1.0 to 50μF |
耐电压Dielectric strength | (A) Between terminals: 175% of rated voltage for 2 sec. (B) Between terminals and case: 200% of rated voltage+1000v for 60 sec. |
电容量误差Capacitance tolerance | -5% to +10%(U), ±5%(J), ±10%(K) |
绝缘电阻Insulation resistance | (A) Between terminals: C≦1.0μf IR≥10,000MΩ C > 1.0μf IR≥10,000MΩ·μF (B) Between terminals and case: IR≥10,000MΩ |
损耗角Dissipation factor | ≦0.35% at 60Hz.20℃ |
