| 种类 | 电阻器 | 品牌 | EPCOS |
| 型号 | S07K130 | | |
压敏电阻型号 | S07K130 |
订购代码 | B72207S0131K101 |
最大工作电压(VAC) | 130 |
冲击电流(安) | 1200 |
能量吸收(J) | 9．5 |
功能/系列 | StandarD |
电容典型（pF） | 200 |
应用 | 工业 消费者 数据处理等 |

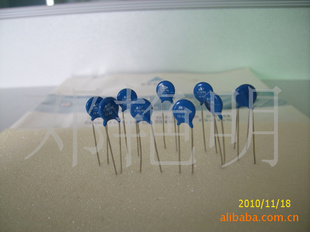

SIOV metal oxide varistors
Leaded varistors, StandarD series
Series/Type: S05, S07, S10, S14, S20
Construction
■Round varistor element, leaded
■Coating: epoxy resin, flame-retardant to UL 94 V-0
■Terminals: tinned copper wire
Features
■Wide operating voltage range 11 … 1100 VRMS
■High surge current ratings up to 8 kA
■No derating up to 85°C ambient temperature
■PSpice models
Approvals
■UL
■CSA (all types≥K115)
■SEV
■VDE
■CECC
■CQC S05/07 (K11 … K460), S10/S14 (K11 … K680), S20 (K11 … K1100)
■IEC
Delivery mode
■Bulk (standard), taped versions on reel or in Ammo pack upon request.
■For further details refer to chapter “Taping, packaging and lead configuration” for leaded varistors.
Options
S10* types with lead spacing 5.0 mm and S20* types with lead spacing 7.5 mm are also available
on request.
G eneral technical data
Climatic category to IEC 60068-1 40/85/56
Operating temperature to CECC 42 000 – 40 … + 85°C
Storage temperature – 40 … +125°C
Electric strength to CECC 42 000≥2.5 kVRMS
Insulation resistance to CECC 42 000≥10 MΩ
Response time <25 ns
