爱普科斯电容器B32562J6474K289
当 前 价：电议
起订数量： /
供货总量： /
有效期至： 2012年12月19日
| 种类 | 电容器 | 品牌 | EPCOS |
| 型号 | B32562 | | |
| 序号 | 物料名称 | 规格型号 | 电容（UF） |
电容容差(％)
| 额定电压(V DC) | 均方根电压(V AC) | 电介质∕类型 | 封装类型 | 电压上升率(V/µs) | 设计 | 引线间距（毫米）
| 尺寸（宽x高x长）（毫米）
| 类型
| 技术
| 类型
| 订购代码 |
| 1 | 电容 | B32562J6474K289 | 0.47 | ±10 | 400
| 200 | Polyester | Ammo pack | 125
| Radial, Uncoated | 15 | 7.3 x 9.3 x 16.5 | MKT
| Stacked | B32562
| B32562J6474K289
|
Typical applications
SMPS, converter
Electronic ballasts
Compact fluorescent lamps (CFL)
Ignition
Climatic
Max. operating temperature: 125 °C
Climatic category (IEC 60068-1): 55/125/56
Features
Special dimensions available on request
High pulse strength
Small dimensions
Construction
Dielectric: polyethylene terephthalate
(polyester, PET)
Stacked-film technology
Uncoated
Terminals
Parallel wire leads, lead-free tinned
Special lead lengths available on request
Marking
Rated capacitance (coded),
rated DC voltage
Delivery mode
Bulk (untaped)
Taped (Ammo pack or reel) for lead spacing £15.0 mm.
For notes on taping, refer to chapter "Taping and packing“.

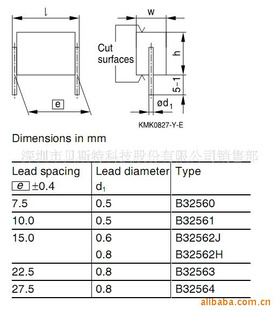

Dimensional drawing
Dimensions in mm
Lead spacing
±0.4
Lead diameter
d1
Type
7.5 0.5 B32560
10.0 0.5 B32561
15.0 0.6 B32562J
0.8 B32562H
22.5 0.8 B32563
27.5 0.8 B32564
Notes on mounting
When mounting these capacitors, take into account creepage distances and clearances to
adjacent live parts. The insulating strength of the cut surfaces to other live parts of the circuit is
1.5 times the capacitors rated DC voltage, but is always at least 300 V DC.
Capacitors with 7.5 mm lead spacing are only suitable for use with single-clad printed circuit
boards.
Metallized polyester film capacitors (MKT) B32560 ... B32564
General purpose (stacked) SilverCapTM
