| 品牌 | 松下 | 型号 | 6mm Square Catbon Composition Trimmer Potentiometers EVND2A |
| 种类 | 0 | 性能 | 可调 |
| 材料 | 碳膜 | 制作工艺 | 0 |
| 外形 | 0 | 标称阻值 | 100欧-1M |
| 允许偏差 | 30% | 温度系数 | 0 |
| 额定功率 | 0.1（W） | 功率特性 | 小功率 |
| 频率特性 | 低频 | 营销方式 | 代理 |
| 产品性质 | 热销 | | |

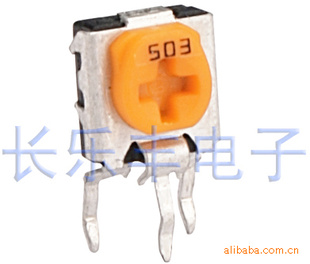

6mm Square Catbon Composition Trimmer Potentiometers
Type: EVND2AA03B**
■Features
Top-adjust or side-adjust available
Highly eddiciency automatic insertion with radial taping package
High reliability (dustproof construction)
■Major Specifications
Nominal Total Resistance 100Ωto 1 MΩ
Taper Resistance Tolerance B±30%
Rating R＜500KΩ: 0.1W 50V (50℃)
Rotation Torque 2 mN.m to 25 mN.m
Operating Life 100 cycles
Minimum Quamtity/Packing Unit 500PCS
Quantity/Carton 5000PCS
■规格与型号
松下可调电阻2AA-100R：EVND2AA03B12
松下可调电阻2AA-1K： EVND2AA03B13
松下可调电阻2AA-10K： EVND2AA03B14
松下可调电阻2AA-100K：EVND2AA03B15
松下可调电阻2AA-1M： EVND2AA03B16
松下可调电阻2AA-200R：EVND2AA03B22
松下可调电阻2AA-2K： EVND2AA03B23
松下可调电阻2AA-20K： EVND2AA03B24
松下可调电阻2AA-200K：EVND2AA03B25
松下可调电阻2AA-300R：EVND2AA03B32
松下可调电阻2AA-3K： EVND2AA03B33
松下可调电阻2AA-30K： EVND2AA03B34
松下可调电阻2AA-500R：EVND2AA03B52
松下可调电阻2AA-5K： EVND2AA03B53
松下可调电阻2AA-50K： EVND2AA03B54
松下可调电阻2AA-500K：EVND2AA03B55
