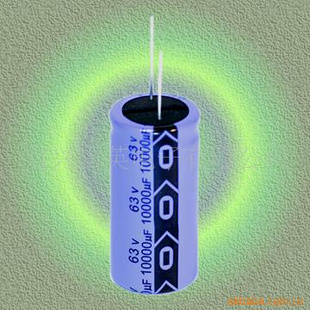

HFR SERIES

105⁰C Radial lead polar, High Temperature Standard for general purpose.

一般高温度及信赖性较高之消费性产品.适用于一般民生用电子、                        通讯设备及工业用产品等

ITEMS

CHARACTERISTIC

Rated Voltage Range(vdc)额定电压

6.3v - 100v DC

160v - 450v DC

Operating Temperature Range使用温度范围

-40⁰C - +105 ⁰C

-25⁰C - +105⁰C

Capacitance Tolerance

电容量容许差

±20%(M) at 20⁰C,120Hz

Leakage Current

漏泄电流

I=0.01CV or 3mA

I=0.03CV+15mA

                                                                                      I = Leakage current(mA)

Whichever is greater after 3 minutes                   C = Rated Capacitance(mF)

                                                                                     V = Working Voltage (v)

Dissipation Factor (tand)

损失角之正接

Add 0.02 per 1000mF for more than 1000mF(at 20⁰C,120Hz)

Rated voltage(Vdc)

6.3

10

16

25

35

50

63

100

160~250

350~450

DF(tanδ)

0.24

0.20

0.17

0.15

0.12

0.10

0.10

0.10

0.20

0.25

Low Characteristics

低温特性

Max. impedance ratio at 120Hz to the 20⁰C value;

Rated voltage(Vdc)

6.3

10

16

25

35~100

160~250

350~450

Z(-25℃)/Z(20℃)

4

3

2

2

2

8

12

Z(-40℃)/Z(20℃)

10

8

6

4

3

--

--

Load Life

高温负载寿命

After 1000 hours application of Rated voltage at 105⁰C the capacitor shall meet the following limits

Capacitance change rate

≦ ±25% of initial value

DF(tanδ)

≦ 200% of the initial specified value

Leakage current

initial specified value

Shelf Life

高温无负载寿命

AT 105⁰C no voltage applied after 500 hours the capacitor shall meet the following limits.

Capacitance change rate

≦ ±25% of initial value

DF(tanδ)

≦ 200% of the initial specified value

Leakage current

≦ 200% of the initial specified value
