Features
• Low-voltage and Standard-voltage Operation
─ 1.8 (VCC = 1.8V to 5.5V)
• Internally Organized 512 x 8 (4K), or 1024 x 8 (8K)
• Two-wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility

• Write Protect Pin for Hardware Data Protection
• 16-byte Page (4K, 8K) Write Modes
• Partial Page Writes Allowed
• Self-timed Write Cycle (5 ms max)
• High-reliability
─ Endurance: 1 Million Write Cycles
─ Data Retention: 100 Years

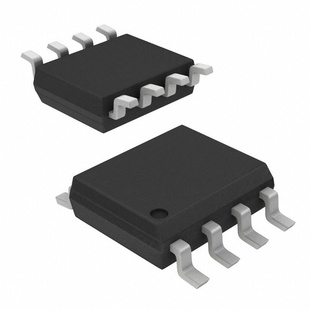

• 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra-Thin Mini-MAP (MLP 2x3), 5-lead
SOT23, 8-lead TSSOP and 8-ball dBGA2 Packages
• Lead-free/Halogen-free
• Die Sales: Wafer Form and Tape and Reel

Description
The AT24C04B/08B provides 4096/8192 bits of serial electrically erasable and
programmable read-only memory (EEPROM) organized as 512/1024 words of 8 bits
each. The device is optimized for use in many industrial and commercial applications
where low-power and low-voltage operation are essential. The AT24C04B/08B is
available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra-Thin Mini-
MAP (MLP 2x3), 5-lead SOT23, 8-lead TSSOP, and 8-ball dBGA2 packages and is
accessed via a Two-wire serial interface. In addition, the AT24C04B/08B is available in
1.8V (1.8V to 5.5V) version.
