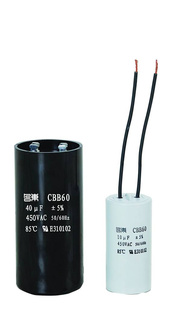

①型号Type：CBB60
CBB60型交流电动机用金属化聚丙烯膜电容器
Metallized Polypropylene Film Capacitor for AC Motor
②特点Features：
体积小，重量轻，损耗小，内部温升小，自愈效果佳，电容量稳定。
Small size,light weight,small dissipation factor,small inherent temperature rise.Excellent self-healing property,Good capacitance stability.
③用途Applications：

适用于频率为50Hz⁄60Hz交流电源供电的单向电动机起动和运转

Suitable for starting and running of 50Hz⁄60Hz AC single-phase motor.
技术要求Specifications:

引用标准Reference Standard:GB3667-2005(IEC60252-1)

气候类别Climatic Category:40⁄070⁄21

安全认证Approval:UL

额定电压Rated Voltage:250VAC﹑300VAC﹑350VAC﹑400VAC﹑450VAC

电容量范围Capacitance Range:2.4μF~60μF

电容量偏差Capacitance Tolerance:±5%(J) ±10%(K)

耐电压Voltage Proof:引线之间Between Terminals:2UR(3s)

                               极壳之间Between Terminals And Case:2000VAC(10s)

损耗角正切值Dissipation Factor:≤0.004  CR≤30μf

                                               ≤0.006  30μf <CR≤60μf (20℃,1KHz.)

最高工作电压Max.Operating Voltage:1.1Un

最大工作电流Max.Operating Current:1.3In

电极端子Terminals:插片式或引线式 Push in connector or insulated wires
