①型号Type：CBB61

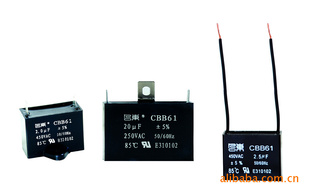

CBB61型启动电容器
Metallized Polypropylene Film Capacitor for AC
②特点Features：
损耗小，内部温升小，绝缘电阻高，自愈性好，性能稳定，可靠性高，塑料外壳，环氧树脂灌封，外观一致性好。
Small dissipation factor,small inherent temperature rise, high insulation resistance.,excellent self-healing property, high reliability,plastic case filled with epoxy resin,the identical outer appearance.

③用途Applications：

适用于频率为50Hz⁄60Hz交流电源供电的单向电动机起动和运转。
Suitable for starting and operation of 50Hz ⁄60Hz AC single-phase motor.

④技术要求Specifications：

引用标准Reference Standard:GB3667-2005(IEC60252-1)
气候类别Climatic Category： 40/070/21

安全认证Approval:UL
额定电压Rated Voltage:250VAC﹑350VAC﹑450VAC﹑500VAC
电容量范围Capacitance Range:0.1μf ~40μf
电容量偏差Capacitance Tolerance:±5%(J)±10%(K)
绝缘电阻Insulation Resistance:≥3000s (20℃,100V,1min)
损耗角正切值Dissipation Factor:≤0.003  CR≤20μf

                                               ≤0.005  20μf <CR≤40μf (20℃,1KHz.)
耐电压Voltage Proof:引线之间Between Terminals:2UR(3S)

                                极壳之间Between Terminals And Case:2000VAC(10s)
