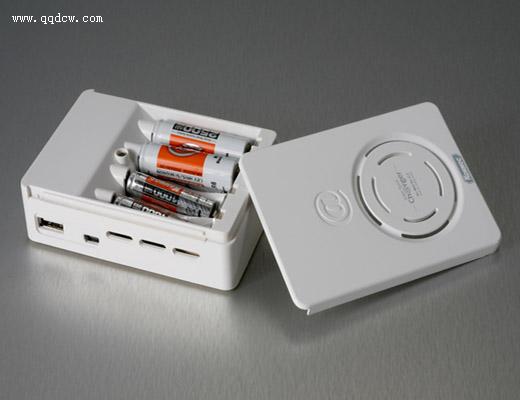

QUICK CHARGER+MOBILE POWER
Model No. : KCR-0148
·Two functions: battery charger and mobile charger
·LED indications: Red-charging,Green-Fully charged and on trickle charge
Flash-In autoprotection status
·Additional 12V car kit&5V USB input for digital devices
SPECIFICATIONS:
·Input: 100-240V AC,50/60Hz 120mA
12V DC 700mA
Output: 2.4V*1(2pcs) DC 1200mA/AA 2.4V*2(4pcs) DC 600mA/AA
2.4V*1(2pcs) DC 650mA/AAA 2.4V*2(4pcs) DC 330mA/AAA
·Input: 5V DC 500mA
Output: 2.4V*1(2pcs) DC 500mA/AA
2.4V*2(4pcs) DC 300mA/AAA
·USB Output: USB 5V DC 300mA max
FEATURES:
·Suitable for 2/4pcs AA/AAA size Ni-MH/Ni-Cd rechargeable batteries
·100-240V worldwide voltage,12V car kit and USB connector function
· –ΔV control
·Over-current protection.
·Over-temperature protection
·Safety timer
·Detection of defective or non-rechargeable batteries
·Reverse-polarity protection
·Trickle charge after fully charged
·Detection of non-rechargeable&bad cell
·When load 4pcs AA dry or rechargeable batteries into the charger,it can function(using a USB
Cable)as a power supply with 5V output to power MP3/MP4/PDA/digital devices
·Can charge for Ipod products(Some iPod products can no be charged by this product)
·Battery auto-recovery function
Charging time
|
Battery type |
capacity |
Charging time(2/4pcs) |
|
AA Ni-MH |
2500 mAh |
2.5/5.0 h |
|
AA Ni-MH |
1300 mAh |
1.3/2.6 h |
|
AAA Ni-MH |
1000 mAh |
1.8/3.6 h |
|
AAA Ni-MH |
600 mAh |
1.1/2.2 h |
|
AA Ni-Cd |
800 mAh |
0.9/1.8 h |
|
AAA Ni-Cd |
300 mAh |
0.8/1.6 h |
