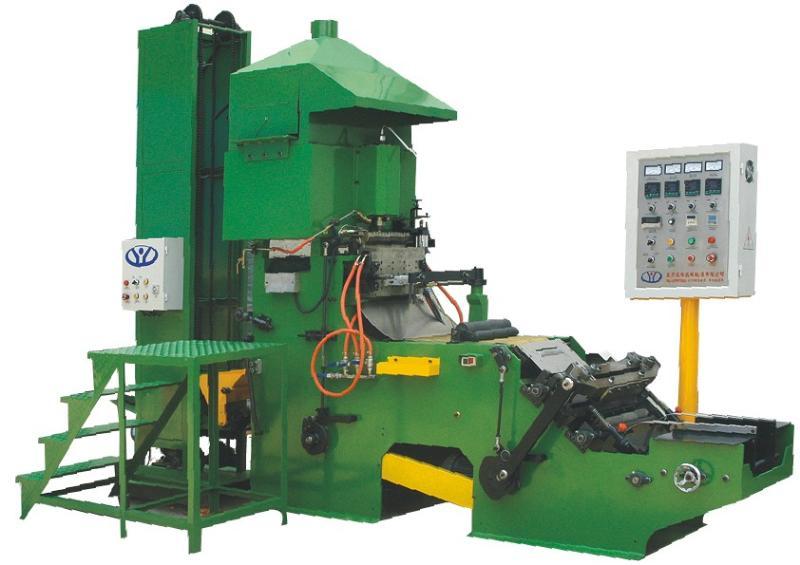

机型:YH158型铸板机
Item:YH158 Grid Casting Machine
泉州益华机械有限公司
QUANZHOU YIHUA MACHINME CO.,LTD
机型:YH158型铸板机
Item:YH158 Grid Casting Machine
主要特点:
Product main feature:
1. 主机速度均采用进口变频器无极调速、模具的开合、铅液的定量,供给采用稳定可靠的气动元器件控制。Main machine speed are imported inverter infinitely adjustable-speed, mould open and close, lead of liquid supply all use of quantitative stable reliable pneumatic components to control
2. 供铅系统采用定量供铅,结构简单,铅阀芯采用耐高温、耐冲击材料,使用时间长,更换简单。Our lead supply system is using by the lead to quantificationally supply simple structure, and the lead valve spool use high temperature resistant, impact resistant material, long using life, easy replace.
3. 平推式的拉杆结构,可保持长时间稳定生产,不易长毛边,减少工人喷模次数,从而提高产量。The lever structure of horizontal push type will be hold on a long time to product steadily and not easy to grow the burr in the battery plate, reduce the number of workers spray mold for increase production.
4. 可选配废料自动回炉装置,在当前企业用工资源匮乏的形势下,大大减少工人的劳动强度,为留住铸片员工,创造更好的工作条件! Optional the waste automatic return device. At the situation of current enterprise employee resource is scarcity. It’s great to reduce the labouring intensity and urge the cast plate employees stay to creating better working conditions.
铸造机装机功率:
Grid Casting Machine Power:
铅 炉: 3KW×6支=18 KW 铅 勺:900W×4=3.6KW
Lead Furnace: 3kw×6sets=18kw Lead Spoon:900w*4sets=3.36kw
模 具: 1KW×2=2KW 电 机: 0.75KW
Mould: 1kw×2 sets=2kw Motor: 0.75kw
废料带电机: 0.75KW
Lead Waste Of Motor:0.75kw
实际使用总功率: 14KW~17 KW
Total Power: 14kw~17kw
最快浇铸效率: 17片/分 熔铅炉容量: 0.9T
Producing: 17 grids / min Lead Melting Furnace Volume: 0.9T
浇铸板栅范围: (250~385)×(100~180)×(1~5)MM
Casting Size:(L:250 - 385)*(W:100 - 180)*(T:1.0-5.0)mm (optional wide frame).
用户需配置资源:
Resource Allocation:
电力容量: 电 源380V±10%
Power Supply: 380V±10%
冷 却 水: 管 径4分,出水管8分
Cooling Water: pipe diameter is 2/5 inch and outlet pipework is 7/8 inch
压缩空气: 工作压力0.4~0.6Mpa 排 气 量: 不 小 于0.3立方/分钟
Compressed air: working pressure is 0.4-0.6Mpa. exhaust amount is not less than 0.3m/min
主 机 重 量:1.85T
Machine G.W.:1.85T
