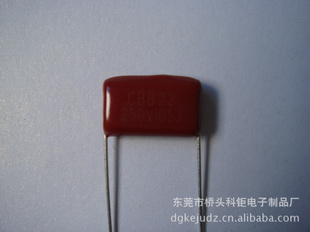

MPP为非感应式,用镀金属聚丙烯膜作为电介质/电极绕制而成,采用镀锡铜线,环氧树脂包封。主要应用于高频率滤波、和垮接，且在通讯、工业供电设备中广泛运用。
MPP is the non- induction type, circles the system with the platingpolypropylene membrane as the dielectric medium/electrode to become,picksWith tin-plating copper wire, epoxy resin envelope. Mainlyapplies to the high-frequency filter, and breaks down meets, alsoIn communication, in industry generating plant widespreadutilization
OperatingTemperature 工作温度：-40℃~+85℃
Capacitance Range 容量范围：.001~10μF
Capacitance tolerance 容量公差：±5%(J) ±10(K) ±20(M)
Voltage proof 耐电压：1.6UR(3S)
Work Voltage 工作电压：100V-630VDC
Dissipation Factor 损耗因素：0.1%Max at 1KHz,25℃
Insulation Resistance 绝缘电阻： >50000MΩ(C≤0.33μF);>15000MΩ(C＞0.33μF)
