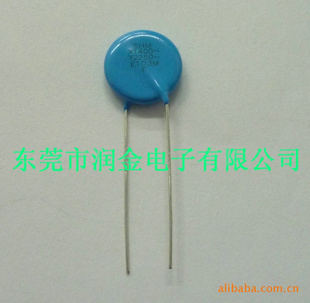

供应陶瓷安规电容Y2(图)
当 前 价：电议
起订数量： /
供货总量： /
有效期至： 2012年12月12日
| 品牌 | 正品 | 型号 | DCF Y1/X1 |
| 介质材料 | 陶瓷(瓷介) | 应用范围 | 安规 |
| 外形 | 圆片形 | 功率特性 | 小功率 |
| 频率特性 | 低频 | 调节方式 | 固定 |
| 引线类型 | 径向引出线 | 允许偏差 | ±20（%） |
| 耐压值 | 500（V） | 标称容量 | 1 ~ 10000pF |
| 损耗 | 2.5% | 额定电压 | AC 400 , 250（V）（V） |
1.特点及用途(FEATURES & APPLICATIONS)
| ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513dbd2c78f6b4f2bec2a65d0\")
| | 阻燃环氧树脂包封，阻燃性达UL94/V-0级适用于旁路，电线耦合，跨线等用途。 | |
| 2.技术指标(SPECIFICATIONS)
| 电容量 (capacitance) | 100pF～4700pF | | 电容量允许偏差 (capacitance tolerance) | K(±10%),M(±20%) | | 使用温度 (operating temperature) | -25℃～85℃ | | 额定电压 (rated voltage) | Y1, X1 400VAC | | 耐电压 （voltage proof） | Y1，X1 4000VAC | | 损耗角正切值 (dissipation factor)(tgδ) | tgδ≤2.5% @ 20℃,1KHz,1±0.2V rms | | 绝缘电阻 (insulation resistance)(IR) | IR ≥ 10000MΩ @ 20℃,500VDC for 1 minute | | 温度特性 (temperature characteristic) | Y5P,Y5U，Y5V |
|
| 3.电容量及尺寸对照表(CAPACITANCE & DIMENSION CHART)
| Temp.
Char. | Part Number | Plate Size | Capacitance
(pF) | Cap.Tol. | Dimensions(mm) | d(mm) | | Dmax | Tmax | F | | Y5P(B) | DCF101KY5PG0--- | 48220 | 100 | K (±10%) | 7.0 | 5.5 | 10.0 | 0.60～0.65±0.05 | | DCF151KY5PG0--- | 52200 | 150 | 7.0 | 5.5 | 10.0 | | DCF181KY5PG0--- | 52200 | 180 | 7.5 | 5.5 | 10.0 | | DCF221KY5PG0--- | 52200 | 220 | 7.0 | 5.5 | 10.0 | | DCF271KY5PG0--- | 52200 | 270 | 7.5 | 5.5 | 10.0 | | DCF331KY5PG0--- | 52200 | 330 | 7.5 | 5.5 | 10.0 | | DCF391KY5PG0--- | 58200 | 390 | 8.0 | 5.5 | 10.0 | | DCF471KY5PG0--- | 62200 | 470 | 8.0 | 5.5 | 10.0 | | DCF561KY5PG0--- | 68200 | 560 | 9.0 | 5.5 | 10.0 | | DCF681KY5PG0--- | 72200 | 680 | 9.5 | 5.5 | 10.0 | | DCF821KY5PG0--- | 82200 | 820 | 10.0 | 5.5 | 10.0 | | DCF102KY5PG0--- | 90200 | 1000 | 11.0 | 6.0 | 10.0 | | DCF122KY5PG0--- | 100200 | 1200 | 12.0 | 6.0 | 10.0 | | DCF152KY5PG0--- | 115210 | 1500 | 13.5 | 6.0 | 10.0 | | DCF222KY5PG0--- | 140200 | 2200 | 16.0 | 6.0 | 10.0 | | Y5U(E) | DCF102MY5UG0--- | 62210 | 1000 | M (±20%) | 8.0 | 5.5 | 10.0 | | DCF122MY5UG0--- | 68210 | 1200 | 8.5 | 5.5 | 10.0 | | DCF152MY5UG0--- | 73210 | 1500 | 9.0 | 5.5 | 10.0 | | DCF182MY5UG0--- | 82210 | 1800 | 10.0 | 5.5 | 10.0 | | DCF222MY5UG0--- | 88210 | 2200 | 11.0 | 6.0 | 10.0 | | DCF272MY5UG0--- | 95210 | 2700 | 11.5 | 6.0 | 10.0 | | DCF332MY5UG0--- | 108210 | 3300 | 13.0 | 6.0 | 10.0 | | DCF392MY5UG0--- | 115210 | 3900 | 13.5 | 6.0 | 10.0 | | DCF472MY5UG0--- | 130220 | 4700 | 15.0 | 6.0 | 10.0 | | Y5V(F) | DCF102MY5VG0--- | 48230 | 1000 | M (±20%) | 6.5 | 5.5 | 10.0 | | DCF102MY5VG0--- | 52230 | 1000 | 7.0 | 5.5 | 10.0 | | DCF152MY5VG0--- | 58230 | 1500 | 7.5 | 5.5 | 10.0 | | DCF182MY5VG0--- | 62230 | 1800 | 8.0 | 5.5 | 10.0 | | DCF222MY5VG0--- | 73230 | 2200 | 9.0 | 5.5 | 10.0 | | DCF272MY5VG0--- | 78230 | 2700 | 9.5 | 5.5 | 10.0 | | DCF332MY5VG0--- | 88230 | 3300 | 11.0 | 5.5 | 10.0 | | DCF392MY5VG0--- | 95230 | 3900 | 11.5 | 6.0 | 10.0 | | DCF472MY5VG0--- | 108230 | 4700 | 13.0 | 6.0 | 10.0 | |
| 4 . 认证标准及证书(APPROVAL STANDARDS & FILE NUMBERS) Safety
Organization | Standard No. | Recognition No. | Rated Voltage | Approved Monogram | | UL | UL 1414（6th edition） | E252221 | X1 250VAC
Y1 250VAC | ![\"\"](\"http://769easygather.769shop2.ce.net.cn:7405/newEbiz1/769easygatherres/filerepository/images/c373e91513e08bad8f6b4f2bec2a65d0\") | USA | | CUL | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08bad8f6b4f2bec2a65d0\") | Canada | | VDE | EN 60384-14(VDE 0565Teil 1-1):2006-04;
EN 60384-14:2005-08;IEC 60384-14(ED.3) | 40013795 | X1 400VAC
Y1 400VAC | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08c118f6b4f2bec2a65d0\") | Germany | | ESTI | EN 60384-14(VDE 0565Teil 1-1):2006-04;
EN 60384-14:2005-08;IEC 60384-14(ED.3) | 05.0467 | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08c498f6b4f2bec2a65d0\") | Switzerland | | SEMKO | 507828 | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08cc68f6b4f2bec2a65d0\") | Sweden | | DEMKO | 313452-01 | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08c7c8f6b4f2bec2a65d0\") | Denmark | | FIMKO | NCS/FI 21820 | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08d188f6b4f2bec2a65d0\") | Finland | | NEMKO | P05204560 | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08d788f6b4f2bec2a65d0\") | Norway | | CB | EN 60384-14(VDE 0565Teil 1-1):2006-04;
EN 60384-14:2005-08;IEC 60384-14(ED.3) | DE 1-32600 | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08dcb8f6b4f2bec2a65d0\") | IEC | | CQC | GB/T14472-1998 | CQC04001011968 | X1 400VAC
Y1 250VAC | ![\"\"](\"http://www.easygather.com/newEbiz1/769easygatherres/filerepository/images/c373e91513e08e2c8f6b4f2bec2a65d0\") | |
