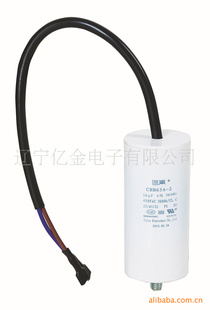

①型号type：CBB65A-2

CBB65A-2型金属化聚丙烯安全膜电容器

Metallized Polypropylene Safety Film Capacitor

②特点Features：

安全膜电容器是锌铝合金加厚边分区蒸镀的金属化聚丙烯薄膜卷绕而成，保障电容器安全所需的微型保险丝在蒸镀薄膜时一起镀在薄膜表面，每平方米达2万条之多，保险丝的反映非常灵敏，能有效地隔离电弱点的击穿部分，不向电容器的其他部分蔓延，因而不但使电容器比传统的压敏式防爆电容器更可靠，更安全，而且大大延长电容器的使用寿命。

在过负荷情况下，电容器会自动开路，不会造成燃烧，安全防爆更可靠。

使用中损耗小﹑温升低﹑寿命长﹑体积小﹑耐压高，防爆作用不依赖于电容器外壳，因而可制成圆壳﹑方壳﹑立式﹑卧式等各种形状的防爆电容器，阻燃型塑料外壳和阻燃树脂灌封，不存在漏油弊端。

It is wound with metallized polypropylene film,adopting divisional coating in which edge adding thick by zinc and aluminum,ensuring capacitor safety needs''''minitype fuse in which coating the surface of film over 20,000pieces/㎡.The fuse reacts fast and can isolate the breakdown weak points effectively and does not spread to other parts,so this kind of capacitor is not only more reliable and safer than the anti-explosion varistor one,but also larger extension of the using life.

Under overloading,it will be open-circuit and not cause burn.More reliability with safety and anti-explosion.

Small dissipation,low temperature rise,long life,small size,high voltage proof,anti-explosion effect not relying on the capacitor case,so it can be made into round,rectangular,vertical,horizontal type and so on,flame-retardant plastic case and filling without leakage.

③用途Applications：

适用于频率为50Hz/60Hz交流电源供电的单向电动机起动和运转。

Suitable for starting and running of 50Hz/60Hz AC single-phase motors.

④技术要求Specifications：

引用标准Reference Standard：GB3667-2005(IEC60252-1) (EN60252-1)

气候类别Climatic Category：40/085/21

运行等级Operating Class：C(3000h)

安全防护等级Safety Class：P2

安全认证Approval:VDE,CQC

额定电压Rated Voltage：200VAC/250VAC﹑300VAC﹑350VAC﹑400VAC﹑450VAC﹑480VAC/500VAC

电容量范围Capacitance Range：1µF~80µF

电容量偏差Capacitance Tolerance：±5%(J)  ±10%(K)

耐电压Voltage Proof：引线之间Between Terminals：2U(3s)

                                 极壳之间Between Terminal And Case：2500VAC(10s)

绝缘电阻Insulation Resistance：≧3000s  (20℃,100V,1min)

损耗角正切值Dissipation Factor：≦0.004，C≦30µF

                                                 ≦0.007,30µF﹤C≦60µF

                                                 ≦0.01，C﹥60µF       (20℃,1KHz)

最高工作电压Max.Operating Voltage：1.1Un

最大工作电流Max.Operating Current：1.3In

安装方式Mounting Mode：Ⅰ：圆塑壳平底Round Plastic Flat Bottom

                                       Ⅱ：圆塑壳Round Plastic M6×10

                                       Ⅲ：圆塑壳Round Plastic M8×10
