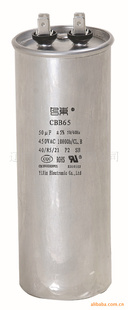

①型号Type：CBB65

CBB65型交流电动机用金属化聚丙烯膜电容器

Metallized Polypropylene Film AC Motor Capacitor

②特点Features：

体积小，重量轻，损耗小，内部温升小，自愈效果佳，电容量稳定，内部装有防爆装置，使用安全可靠。

Small size,light weight,low loss,small inherent temperature rise,good self-healing effect,stable capacitance，inherent anti-explosion design,more safety and reliability.

③用途Applications：

适用于频率为50/60Hz交流电源供电的单向电动机起动和运转。

Widely applied to starting and running of AC single-phase motors at 50Hz∕60Hz frequency power.

④技术要求Specifications：

引用标准Reference Standard: GB3667-2005(IEC60252-1)
气候类别Climatic Category: 40∕085∕21  40∕105∕21

运行等级Class Of Operation:B(10000h)﹑C(3000h)

安全防护等级Safety Class:P1 P2

安全认证Approval:UL

额定电压Rated Voltage: 250VAC﹑450VAC
电容量范围Capacitance Range:5μF~80μF

电容量偏差Capacitance Tolerance: ±5%(J)
耐电压Voltage Proof:引线之间Between Terminals:2UR (3s)

                    极壳之间Between Terminals And Case:2000VAC(10s)

损耗角正切值Dissipation Factor:≤0.004,CR≤30μF

                                   _{≤0.008,30μF<CR≤80μF(20℃,1KHz）}

最高工作电压Max.Operating Voltage:1.1Un

最大工作电流Max.Operating Current:1.3In
