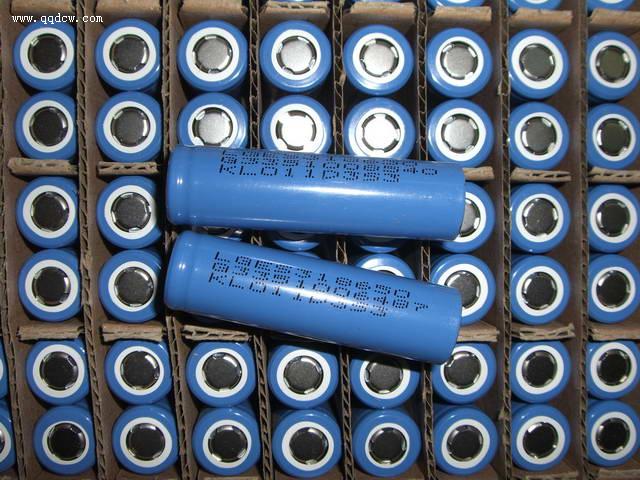

18650 battery cell
Model: ICR18650S3
Norminal Capacity : 2200mAh
Minimum Capacity : 2150mAh
Nominal Voltage : 3.7 V
Internal Impedance : ≤ 60 m
Cycle Performance : 80% of initial capacityat 300 cycles
Diameter : 18.3±0.1 mm (Max 18.4 mm)
Height : 64.8±0.2 mm (Max 65.1 mm)
Weight(Typical) : 44.5g
Charge : 1075mA, 4.2V, 50mA End-current (CC-CV)
Discharge : 430mA, 3.0V cut-off
Charge Temperature : 0 +45
Discharge Temperature : -20 +60
Store Temprature : 0 +60
